BMW SCANNER - SPECIALIZED
DIAGNOSTIC EQUIPMENT FOR BMW VEHICLE
Model OPS |
||||||||||||
 |
|||||||||||||
|
● Product code: ET1017 ● Origin: ● Availability: In stock ● Rate:   (Only support for Windows operating system) |
|||||||||||||
|
|
|||||||||||||
| ● INTRODUCTION | |||||||||||||
|
- BMW Scanner is a specialized tool used for fault diagnosis, live data analysis, setting, adjusting parameters and programming for BMW cars.
- On vehicle models from the E65 on, BMW is for the first time using fiber-optic cables as standard for communication between control units. The optical buses are notable for their high data transmission rate and larger bandwidth. - PC based solution make it easier and faster for your diagnosing and programming. |
|||||||||||||
| ● APPLICATION | |||||||||||||
|
- Used for BMW models before 2009 and some
models to now: 1 Series, 3 Series, 5 Series, 7 Series, 8 Series, X Series, Z Series, Z-Reihe, MINI - BMW scanner with DIS software used for diagnosing models via OBD-II connector: E87, E90, E91, E92, E60, E61, E63, E64, E65, E66, E70, E83, E85, E86, E38(OBD-II), E39(OBD-II),E46(OBD-II ), E52, E53, R56, R50, R52, R53 - BMW scanner with SSS software used for programming models: (1)OBD-II connector: E87, E90, E91, E92, E60, E61, E63, E64, E65, E66, E70, E83, R56, R50, R52, R53 (2) Fiber-optic cable: E87, E90, E91, E92, E60, E61, E63, E64, E65, E66, E70, R56, R50, R52, R53 |
|||||||||||||
|
|||||||||||||
| ● FUNCTION | |||||||||||||
|
- Read / Clear fault code
- Show live data of sensors and actuators - Active and check actuators - Maintenance information - Look up wiring diagram and technical document with fault codes - Adjusting and setting parameters, ECU programming |
|||||||||||||

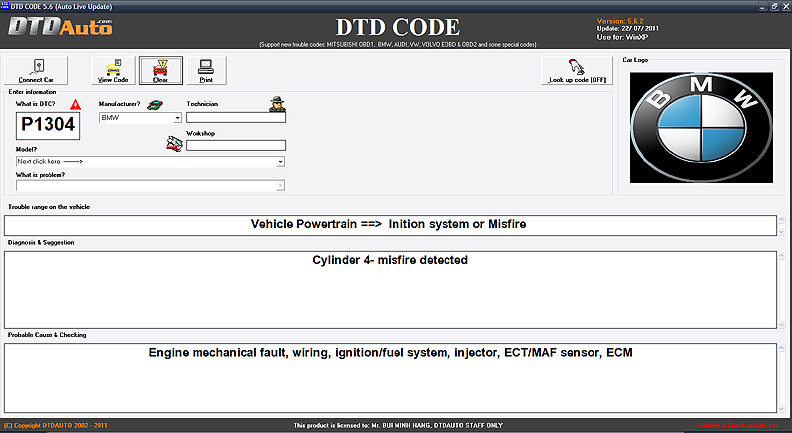

 DTD Code software interface |
|||||||||||||
| ● ADVANTAGE | |||||||||||||
|
- PC based solution is flexible, efficiency, accuracy and reliability.
- Support information of fault code with DTD Code software - Free and automatically updated the newest version DTD Code software - Online support technical by DTDAUTO technician - Warranty 12 month for techniques faults of product |
|||||||||||||
| ● PACKAGE | |||||||||||||
|

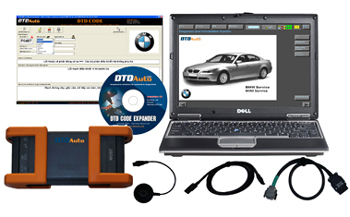

- 01 Main machine
- 01 OBD-II cable - 01 Fiber optic cable - 01 LAN cable - 01 DIS software - 01 SSS software - 01 DTDCode software (Optional) - User guide |
|||||||||||||
