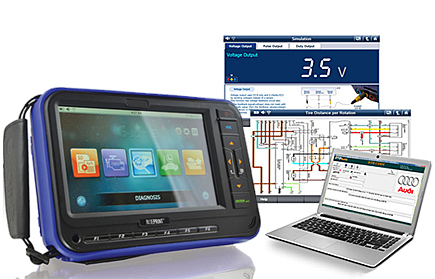

GIT SCAN II - PROFESSIONAL SCANNER FOR CARS & TRUCKS
(Special OEM standards for cars & trucks of KOREA)

● Product code: ET1024
● Origin:
● Availability: In stock
● Rate:

(Only support for Windows operating system)

● INTRODUCTION

- GIT SCAN II is designed as a portable computer by using Windows CE operating system with touch screen. This is a diagnostic tool integrates many professional functions, high quality with technology in the Japan. It is designed as synthetic data analysis center and ECU programming with the newest technology and integrated functions. It is allows accurate diagnose, stable, comprehensive, easy for user.
- Support specialized functions for setting, adjustment and programming ECU of ASIAN vehicles. Especially, support intensive for passenger cars, trucks, bus of KOREA.
- Appliances determine fault for all cars in the world and all trucks, mini bus, medium bus, large bus and build vehicles with both 24V and 12V battery in Korea and Japan
- Support all standard OBD1, MOBD, EOBD, JOBD and OBD2 in the world and trucks protocols.

● APPLICATION

1. TRUCKS 24V AND 12V BATTERY
- Truck and Bus South of the Korea:


HYUNDAI SMALL TRUCK	HYUNDAI AVERAGE TRUCK	HYUNDAI HEAVY TRUCK	HYUNDAI TRACTOR	HYUNDAI CONSTRUCTION MACHINE

HYUNDAI SMALL BUS	AVERAGE BUS	HYUNDAI LARGE BUS	KIA SMALL TRUCK	KIA AVERAGE TRUCK

KIA LARGE TRUCK	SMALL TRUCK	KIA LARGE BUS

- Trucks and passenger bus of the Japan:


MITSUBISHI/FUSO TRUCK	HINO TRUCK	ISUZU TRUCK	UD TRUCK	HINO BUS

ISUZU BUS	MITSUBISHI BUS

2. PASSENGER CARS

- KOREA:


HYUNDAI	KIA	DAEWOO	CHEVROLET	SSANGYONG

- JAPAN


TOYOTA	LEXUS	HONDA	MITSUBISHI	SUZUKI	DAIHATSU	ISUZU	INFINITY	ACURA	SUBARU	NISSAN

MAZDA

3. MALAYSIA, INDIAN, CHINE


PERODUA	PROTON	TATA	MAHINDRA	CHERY	GREAT WALL	LIFAN	VENIRAUTO	MARUTI	NAZA

4. EUROPE & AMERICAN CARS


AUDI	DACIA	BMW	CHRYSLER	CHEVROLET	ALFAROMEO	DODGE	FIAT	FORD	RENAULT	SEAT

CITROEN	LADA	LANCIA	LANDROVER	MINI	VOLKSWAGEN	GM	MERCEDES	CHERY	SKODA	SPERANZA

PEUGEOT	JEEP	OPEL	VOLVO

● FUNCTION

1. The main functions
    + Read / erase fault codes
    + Reset ECU
    + Reset oil pressure warning light
    + Reset fuel pump
    + Display current parameters and live data
    + Active test the actuators (components and the control block)
    + Show ECU information
    + Programming / erase key code
    + Adjustment of sensors (steering angle sensor, acceleration sensor horizontally, steering angle sensor deviation etc ...)
    + Check gear solenoids
    + Adjust the ignition advance timing
    + Warning low battery of key
    + Display information when has collision (at the front, side, driver side, passenger side)
    + Anti-theft warning

The equipment system work:
    + Engine control system (PCM)
    + Chassis system (Chassis)
    + Anti-Lock Braking System (ABS)
    + Traction control system (TCS)
    + Electronic gear control system (AT / EG)
    + Body system (Body)
         + Door lock system
         + Lighting Systems
         + Wiper & washer system
         + Window and convertible system
         + Air Conditioner control system
         + Lock remote control system of door
         + Mirror observing system
         + Electric seat control system
    + Airbag system (SRS)
    + Instrument panel system (IP)
    + Security key System (Immobilizer)
    + 4-wheel drive system (4WD)
    + Cruise control system (ACC)
    + Electronic power steering System (EPS)
    + More some others that depending on the support from ECU of vehicle manufacturers
    + The Hybrid engine control system (Hybrid)
    + Electronic damping system (ECS)
    + Radio System (RADIO)
    + Back support system and parking
    + Electronic Stability System (ESP)
    + Sound System (TONE)
    + Other electronic control system

2. Special functions
- System Auto Search: Users do not need to select the test system. The device automatically search and detect the electronic control system on the vehicle, automatically identify errors and suggest repairs
- Read/ write and edit QR codes for diesel injectors
- Read / write data nozzles, nozzle adjustment, reset nozzle
- Reset and active ECU software, high pressure Pump of Diesel engine

3. Other Features
- Display data as text, graph
- Save and display the data to determine the current breakdown of the sensor and related components.
- Support information and suggestions to repair defects in English

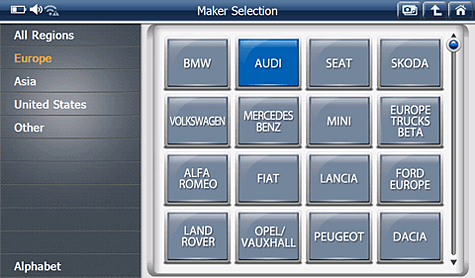

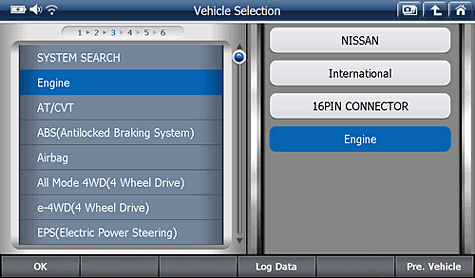

The screen interface for list of cars	The screen interface for electronic control systems on cars

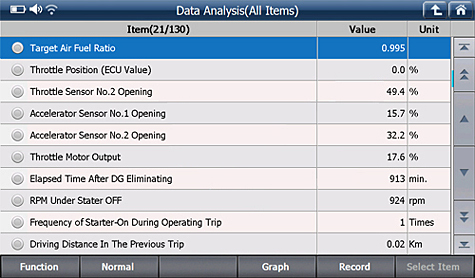

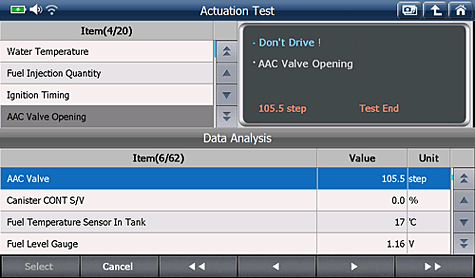

The screen interface for live data	The screen interface for actuator test

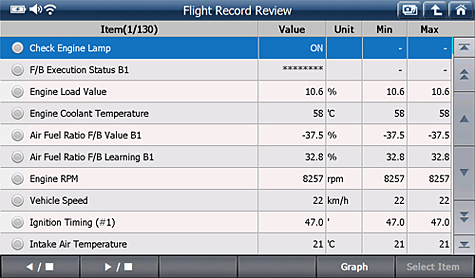

The screen interface for displaying stored data	The screen interface for special function

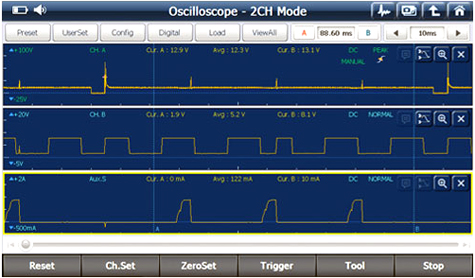

The screen interface for oscilloscope function	The screen interface for oscilloscope function

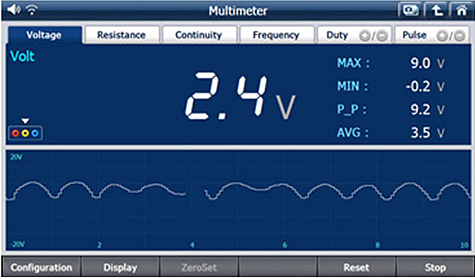

The screen interface for digital meter function	The screen interface for simulation function

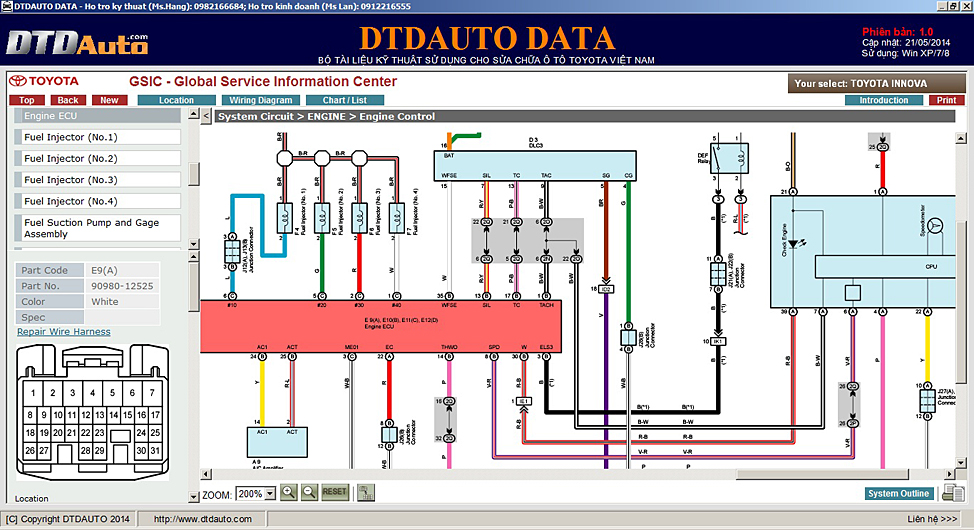

Software interface for repair data

DTD Code Interface

Video for using GIT SCAN II on Chrysler, Dodge, Jeep vehicles

Video for using GIT SCAN II on diesel engine vehicles

Video for using GIT SCAN II on heave trucks

● OPTIONAL PACKAGES

FULL KIT
ASIAN + TRUCK + VMI KIT
ASIAN + TRUCK KIT
STANDARD KIT
MINI KIT
TRADE KIT FOR CAR
TRADE KIT FOR CAR, TRUCK

FULL KIT FOR PROFESSIONAL REPAIRER
PRODUCT CODE: ET1024A
INCLUDE:
- 01 main machine GITSCAN II
   + Include software for vehicles
   + Include specialized software for Hyundai, Kia
- 01 self test cable
- 01 cigarette lighter
- 01 battery cable
- 01 AC/DC adapter
- 01 AC power cord
- 01 SD card reader
- 01 touch pen
- 01 quick guide
- 01 OBD-II cable
- 01 original suitcase of manufaturer
----------------------------------------------------------------------------------------------------
- 01 European car OBD-I adapters
----------------------------------------------------------------------------------------------------
- 01 ASIAN car OBD-I adapters (13 cables)
----------------------------------------------------------------------------------------------------
- 01 data cable for trucks
----------------------------------------------------------------------------------------------------
- 01 DTD Code - Proffessional software lookup fault code
- 01 Automotive repair data set includes 07 softwares: ALL DATA – AUTODATA – MITCHELL -GDS KIA - GDS HYUNDAI - GDS DAEWOO - TOYOTA Viet nam (not included 01 protable hard drive 1TB)
----------------------------------------------------------------------------------------------------

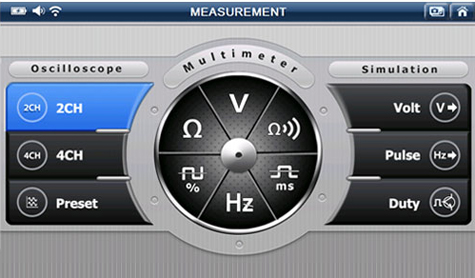

- 01 VMI Module for:
   + Oscilloscope function
   + Digital multi-meter function

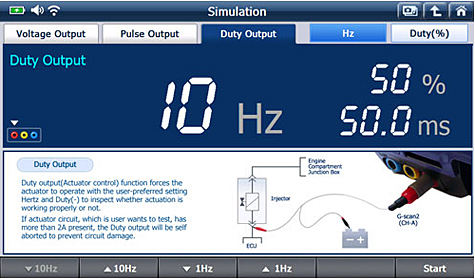

   + Simulation function

KIT FOR ASIAN CARS, TRUCKS AND VMI MODULE
PRODUC CODE: ET1024B
INCLUDE:
- 01 main machine GITSCAN II
   + Include software for vehicles
   + Include specialized software for Hyundai, Kia
- 01 self test cable
- 01 cigarette lighter
- 01 battery cable
- 01 AC power cord
- 01 AC/DC adapter
- 01 SD card reader
- 01 touch pen
- 01 quick guide
- 01 OBD-II cable
- 01 original suitcase of manufaturer
----------------------------------------------------------------------------------------------------
- 01 ASIAN car OBD-I adapters (13 cables)
----------------------------------------------------------------------------------------------------
- 01 data cable for trucks
----------------------------------------------------------------------------------------------------
- 01 DTD Code - Proffessional software lookup fault code
- 01 Automotive repair data set includes 07 softwares: ALL DATA – AUTODATA – MITCHELL -GDS KIA - GDS HYUNDAI - GDS DAEWOO - TOYOTA Viet nam (not included 01 protable hard drive 1TB)
----------------------------------------------------------------------------------------------------
- 01 VMI Module for:
   + Oscilloscope function
   + Digital multi-meter function
   + Simulation function

KIT FOR ASIAN CARS AND TRUCKS
PRODUCT CODE: ET1024C
INCLUDE:
- 01 main machine GITSCAN II
+ Include software for vehicles
+ Include specialized software for Hyundai, Kia
- 01 self test cable
- 01 cigarette lighter
- 01 battery cable
- 01 AC power cord
- 01 AC/DC adapter
- 01 SD card reader
- 01 touch pen
- 01 quick guide
- 01 OBD-II cable
- 01 original suitcase of manufaturer
----------------------------------------------------------------------------------------------------
- 01 ASIAN car OBD-I adapters (13 cables)
----------------------------------------------------------------------------------------------------
- 01 data cable for trucks
----------------------------------------------------------------------------------------------------
- 01 DTD Code - Proffessional software lookup fault code
- 01 Automotive repair data set includes 07 softwares: ALL DATA – AUTODATA – MITCHELL -GDS KIA - GDS HYUNDAI - GDS DAEWOO - TOYOTA Viet nam (not included 01 protable hard drive 1TB)

STANDARD KIT AND REPAIR DATA
PRODUCT CODE: ET1024D
INCLUDE:
- 01 main machine GITSCAN II
+ Include software for vehicles
+ Include specialized software for Hyundai, Kia
- 01 self test cable
- 01 cigarette lighter
- 01 battery cable
- 01 AC power cord
- 01 AC/DC adapter
- 01 SD card reader
- 01 touch pen
- 01 quick guide
- 01 OBD-II cable
- 01 original suitcase of manufaturer
----------------------------------------------------------------------------------------------------
- 01 DTD Code - Proffessional software lookup fault code
- 01 Automotive repair data set includes 07 softwares: ALL DATA – AUTODATA – MITCHELL -GDS KIA - GDS HYUNDAI - GDS DAEWOO - TOYOTA Viet nam (not included 01 protable hard drive 1TB)

MINIMUM KIT
PRODUCT CODE: ET1024E
INCLUDE:
- 01 main machine GITSCAN II
+ Include software for vehicles
+ Include specialized software for Hyundai, Kia
- 01 OBD-II cable
- 01 self test cable
- 01 cigarette lighter
- 01 AC/DC adapter
- 01 battery cable
- 01 SD card reader
- 01 touch pen
- 01 quick guide
- 01 original suitcase of manufaturer

TRADE KIT FOR PASSENGER CARS
PRODUCT CODE: ET1024F
INCLUDE:
- 01 main machine GITSCAN II
+ Include software for vehicles
+ Include specialized software for Hyundai, Kia
- 01 OBD-II cable
- 01 self test cable
- 01 SD card reader
- 01 touch pen
- 01 quick guide
- 01 suitcase

TRADE KIT FOR PASSENGER CARS AND TRUCKS
PRODUCT CODE: ET1024G
INCLUDE:
- 01 main machine GITSCAN II
+ Include software for vehicles
+ Include specialized software for Hyundai, Kia
- 01 OBD-II cable
- 01 self test cable
- 01 SD card reader
- 01 touch pen
- 01 quick guide
- 01 suitcase
----------------------------------------------------------------------------------------------------
- 01 data cable for trucks

FULL KIT IMAGE OF GITSCAN II
No.	PART NUMBER	DESCRIPTION	IMAGE
01	G-scan2 Base Unit	Main machine
02	G1CDDPA008	A cable used for self test of GIT SCAN II Notes: Do not use this cable for vehicle diagnostic function
03	G1PDDCA002	A power supply cable used when supplying power from the car's cigarette lighter socket
04	G2SDDCA003	A power cable used together with the Cigarette Lighter Cable when supplying power from the car's battery
05	G1CDDPA013	AC to DC converter used for supply of AC power for GIT SCAN II
06	G1CDECA001 (Europe, Korea) / G0PDDCN001(Australia) G0PDDCN002(UK, Malaysia) / G1PDDCA002(North America)	AC power cord
07	A2MDK1CCRP5	SD card reader
08	A2MDT2SD16G	SD card 16GB
09	G1FZFCA001	The main cable used for connecting GIT SCAN II and OBD-II connector on car
10		Original suitcase of manufaturer
EUROPEAN CAR OBD-I ADAPTERS
11	G1PZEPA001	Used for communication with old BMW cars with the 20-pin circular diagnostic connector
12	G1PZEPA002	Used for communication with old Volkswagen, Audi, Seat or Skoda cars with the 2X2 pin diagnostic connector
13	G1PZEPA012	Used for communication with old Mercedes Benz cas with the 38-pin circular diagnostic connector in the engine compartment
ASIAN CAR OBD-I ADAPTERS
14	G1PZDPA001	Used for communication with old Toyota and Lexus cas with 17+1 pin
15	G1PZFPA002	Used for communication with old Toyota and Lexus cars with the 17-pin "Round (Semi-circular)" type diagnostic connector
16	G1PZFPA003	Used for communication with Honda and Acura cars with the 3-pin or 5-pin diagnostic connector
17	G1PZFPA004	Used for communication with old Mazda models Same apperance as Toyota 17P R adapter
18	G1PZFPA005	Used for communication with old Subaru cas with the 9-pin diagnostic connector
19	G1PZDPA002	Used for communication with old Mitsubishi or Hyundai cars with th 12-pin single or 12+16pin dual diagnostic connector
20	G1FDDPA001	Used for communication with old Kia cars with 20 pin diagnostic connector in the engine compartmant Generally used for 1999-2002 cars
21	G1FDDPA002	Used for communication with old Kia cars with 20 pin diagnostic connector in the engine compartmant Generally used for 2003-2005 cars
22	G1CDDPA007	Used for some old Hyundai and Kia models that require special connector for keyless entry remote control coding
23	G1PZFPA007	Used for communication with old Nissan or Infiniti cars with the 14-pin diagnostic connector
24	G2WDDCN006	Used for communication with old Ssangyong cars with 14 pin circular diagnostic connector in the engine compartment
25	G2WDDCN007	Used for communication with old Ssangyong cars with 20 pin square diagnostic connector in the engine compartment
26	G2WDDCN008	Used for communication with old Daewoo cars with 12 pin diagnostic connector
DATA CABLE FOR TRUCK
27		Used for trucks use 24V battery
VMI COMPONENTS
28	G1FDDMN006	Detachable rear module that enables oscilloscope, meter and simulation functions
29	G1FDDCA002	Used for independent grounding of the VMI circuit for stable and accurate measurement
30	G1MTKCA002	Connected to the red Channel A port of the VMI, used for acquiring electric signal from the wires or terminals
31	G1MTKCA003	Connected to the yellow Channel B port of the VMI, used for acquiring electric signal from the wires or terminals
AUTOMOTIVE REPAIR SOFTWARE DATA SET
32	ET1005	DTD CODE - Professional software lookup fault code
33	DC008	Automotive repair data set includes 07 softwares: ALL DATA – AUTODATA – MITCHELL -GDS KIA - GDS HYUNDAI - GDS DAEWOO - TOYOTA Viet nam (not included 01 protable hard drive 1TB)
