| JK SCANNER - SCANNER FOR JAPANESE & KOREAN VEHICLES | |||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||
|
● Product code: ET1008 ● Origin: DTDAUTO ● Availability: In stock ● Rate:  |
|||||||||||||||||||||||||||||||||||||||||||||
| ● INTRODUCTION | |||||||||||||||||||||||||||||||||||||||||||||
|
- JK Scanner is the specialized product that identifies fault control system and electronic monitoring for almost cars and light trucks in the world. Especially, it gives advance support for electronic control system of engine, body, chassis etc... of passenger cars, light trucks
(both gas and diesel 12V) for Japanese, Korean manufactures and joint venture with Japan, Korea.
- Equipment use operating system and an external memory card, free updates. In particular, the device is designed to work for Hyundai, Kia, Daewoo manufactures, such as Kia Bongo III, Porter II Hyundai, Hyundai Starex, Libero... - JK Scanner designed with new high technologies, updated all cars from 1996 to now. It supports full standard JOBD, MOBD, OBD-II. JK SCANNER - A good and reasonable choice for medium and small workshop. You don’t need to invest large amount of money in other expensive equipments! |
|||||||||||||||||||||||||||||||||||||||||||||
| ● FUNCTION | |||||||||||||||||||||||||||||||||||||||||||||
| 1.
Main function
- Read /Clear fault code, reset ECU, show live data for the systems: + Powertrain control module, Engine control module (PCM/ECM) + Antilock brake system (ABS) + Supplemental restraint system (SRS) + Traction control system (TCS) + Automatic tranxle system (AT/EG) + Body system (Door Lock, Lighting, Wiper, Window...) + Instrument panel system (IP) + Immobilizer system (IMMO) + Security system + Tire pressure monitoring system (TPMS) + Air conditioning system (AC) + Electronic mirror system + Electronic seat control system + Combination switch system + Vehicle information systems + Electronic shock absorber control system (ESAC) + Cruise control system (CCS) + Electronic power steering system (EPS) + Navigation system (NAV) + Charging & starting system + Remote engine starter + Parking assist monitor system + Hybrid control system + Radio system + The other electronic control system on vehicle + Other special functions (depending on vehicle) - Read/Clear electronic parking brake system 2. Special function (Auto Scan) This one is automatic detect all electronic control systems and scan for getting fault and fix it with one touch, user don't need select system to check. 3. Other functions - Reset ECU, turn off the check engine light - Show live data - View freeze frame - O2 monitor test - Retrieving I/M readiness status - Check actuators (leak test for the vehicle's EVAP system) - Viewing vehicle information (VIN) - Show current data, Graphing data |
|||||||||||||||||||||||||||||||||||||||||||||
| ● APPLICATION | |||||||||||||||||||||||||||||||||||||||||||||
|
- Used to determine faults in the engine system for most of the new generation of manufacturers in the world which are compliant with the OBD-II standard (Reference in car list)
- Used to determine faults in the engine system for cars have 16 pin connector look like OBD-II standard connector which are not compatible with OBD-II standard of Japan, Korea manufacturers (MOBD, JOBD, Pre-OBD-II). |
|||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||
|
Example for the following Toyota cars do not work with OBD-II, although diagnostic connector is the same 16-pin OBD-II connector then it will work well with this JK Scanner: + Engines: 15BT, 1AZ-XX, 1CD-FTV, 1E, 1FZ-FE, 1GR-FE, 1HD-XX, 1HZ, 1KD-FTV, 1KZ-XX, 1MZ-FE, 1RZ, 1SZ-FE, 1TR-FE, 1WZ, 1ZZ-FE, 2AD-TRB, 2AZ-FE, 2C-XX, 2GR-FE, 2JZ-XX, 2KD-FTV, 2L-XX, 2RZ-XX, 2TR-FE, 2TZ-XX, 2UZ-FE, 2VZ-FE, 2ZZ-XX, 3C-TE, 3L, 3MZ-FE, 3RZ-FE, 3VZ-XX, 3ZZ-FE, 4ZZ-FE, 5K, 5VZ-FE, 7M-XX, 22R-XX... + Models: Avensis, Avalon, Camry, Carina, Corolla, Crown, Corolla, Celica, Cressida, Dyna, Zace, Altis, Innova, Sienta, Supra, Harrier, Prado, Previa, Picnic/Sports Van, Land Cruiser, Hilux, Hiace, Fortuner, Rav4, Yaris, Starlet, Supra, Paseo, LiteAce, 4-Runner, Tacoma, Tercel, MR-II,... (Reference in MOBD Toyota car list) - Used to determine faults in accessories systems for Japanese, Korean cars such as Toyota/Lexus, Honda, Nissan, Mazda, Mitsubishi, Huyndai, Kia, Daewoo, Suzuki, Isuzu, Infiniti, Acura, Subaru, Scion, Holden. |
|||||||||||||||||||||||||||||||||||||||||||||
| ● ADVANTAGE | |||||||||||||||||||||||||||||||||||||||||||||
| - Easy to use
(follow instructions on the screen of the tool)
- Convenient design - Reliable - High quality - Software upgradeable via the internet |
|||||||||||||||||||||||||||||||||||||||||||||
| ● TECHNICAL DETAILS | |||||||||||||||||||||||||||||||||||||||||||||
|
- Screen resolution 320 x 240 pixels - Operating Temperature: 0 to 60 (oC) - Storage Temperature: -20 to 70 (oC) - External Power: 12 to 18 V - Dimension: 212(L) x 110.5(D) x 37.5(W) mm |
|||||||||||||||||||||||||||||||||||||||||||||
 DTD Code interface |
|||||||||||||||||||||||||||||||||||||||||||||
| ● OPTIONAL PACKAGES | |||||||||||||||||||||||||||||||||||||||||||||
|

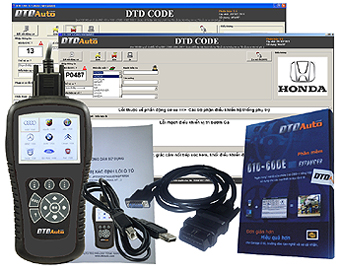

PRODUCT CODE: ET1008A
Include: - 01 main machine (installed full softwares for almost vehicles on the world) - 01 OBD-II cable - 01 USB cable - 01 DTD Code - Proffessional software lookup fault code
PRODUCT CODE: ET1008B
Include: - 01 main machine (installed full softwares for almost vehicles on the world) - 01 OBD-II cable - 01 USB cable |
|||||||||||||||||||||||||||||||||||||||||||||
