TOYOTA TOOL – SPECIALIZED DIAGNOSTIC TOOL FOR TOYOTA VEHICLE | ||||||||||||
 |
|||||||||||||
|
● Product code: ET1021 ● Origin: ● Availability: In stock ● Rate:   (Only support for Windows operating system) |
|||||||||||||
|
|
|||||||||||||
| ● INTRODUCTION | |||||||||||||
|
- TOYOTA TOOL is specialized equipment used to diagnose faults, analyze live data, active actuators for Toyota, Lexus, Scion vehicles since 1996 which are compliant with standard M-OBD, OBD-II
(16 pin connector below steering wheel). This equipment can works well with all Toyota cars have 16 pin connectors
(DLC3) that some specialized OBD-II scanner of other companies doesn’t work. - A solution using software is installed on computer and combined with a signal converter to connect with ECU on car. |
|||||||||||||
|
|||||||||||||
| ● APPLICATION | |||||||||||||
 |
|||||||||||||
|
|||||||||||||
|
- Used to diagnose faults of all electronic systems are controlled by ECU of Toyota, Lexus, Scion vehicles since 1996 that have 16 pins connector
(standard M-OBD, OBD-II). - Toyota tool can be used: + As a repairing-tool for workshop or a training-tool for Vocational School. + Connect to training equipments of EFI, ABS, SRS, AT vv… system + As a technical tester for cars |
|||||||||||||
| ● FUNCTION | |||||||||||||
|
- The main functions: + Read/Clear fault + Reset ECU + Show live data in different formats as analog clock, real-time data graph, statistical table… + Active, check actuators + Show ECU information + Check monitoring status of systems + Add a registry key, edit key, cancel registration key - Equipment work with systems: + Engine control system (PCM) + Chassis system (Chassis) + Anti-lock braking system (ABS) + Traction control system (TCS) + Electronic gear control system (AT/EG) + Body system (Body) + Door lock system + Lighting system + Wiper & washer system + Window & convertible system + Air conditioner control system + Door lock remote control system + Mirror system + Electric seat control system + Airbag system (SRS) + Instrument panel system (IP) + Key security system (Immobilizer) + 4-wheel drive system (4WD) + Cruise control system (ACC) + Electronic power steering system (EPS) + Hybrid system + Electronic damping system (ECS) + Radio system + Parking support system + Electronic stability system (ESP) + Audio system (Audio) + Other electronic control systems vv… - Other special functions vv... |
|||||||||||||
 Interface software - show live data |
|||||||||||||
 Interface software - show live data |
|||||||||||||
 |
|||||||||||||
| Interface software - show live data | |||||||||||||
 |
|||||||||||||
| Interface software - active actuators | |||||||||||||
 |
|||||||||||||
| Interface software - show fault code | |||||||||||||
 |
|||||||||||||
| Interface software - especially function | |||||||||||||

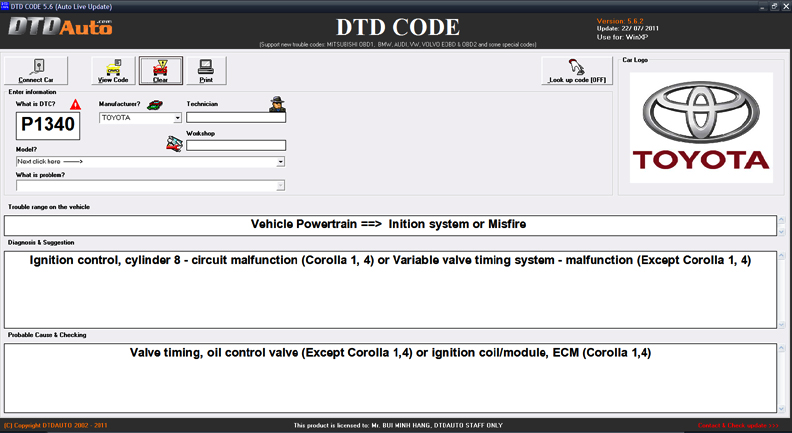

 Interface software - content of fault code |
|||||||||||||
| ● ADVANTAGE | |||||||||||||
|
- PC based solution is flexible - Efficiency, accuracy and reliability in diagnosis - Easy to use - Easy to install - Support information of fault code with DTD Code software - Online support technical by DTDAuto technician - Warranty 12 months for technique faults of product |
|||||||||||||
| ● PC REQUIREMENT | |||||||||||||
|
- Operation system: Windows XP (SP3), Win7 - Processor: 586Mhz or more - RAM: 32 MB or more - Screen resolution: 800 by 600 pixels or more - USB port |
|||||||||||||
| ● PACKAGE | |||||||||||||
|

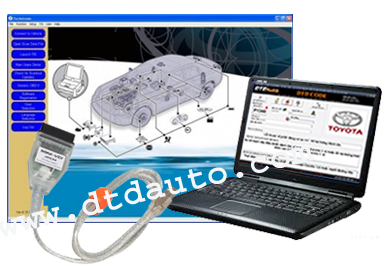

- 01 signal converter is integrated in OBD-II cable - 01 CD-Rom software - 01 CD–Rom DTD Code software (optional) - User guide book |
|||||||||||||
