US SCANNER - SCANNER FOR USA VEHICLES | ||||||||||||
 |
|||||||||||||
|
● Product code: ET1011 ● Origin: DTDAUTO ● Availability: In stock ● Rate:  ● Price: 480$US |
|||||||||||||
Click here for
price, shipping, payment |
|||||||||||||
|
|
|||||||||||||
| ● FUNCTION | |||||||||||||
|
US Scanner is the specialized product identified fault
control system and electronic monitoring of USA manufacturers and joint venture
with USA. A. MOTOR (ENGINE) - Use for most of the new generation of manufacturers in the world which are compliant with the OBD-II standard (Reference in car list) - Use for cars have individual standard EOBD is not OBD-II standard: GM, Ford, Chrysler - Read /clear fault code, display fault on the LCD screen. - Reset ECU, turn off the check engine light (Check) - Check the operation of the exhaust system on the vehicle (for OBD-II standard) - Displays the current data, data graphing (live data) B. AUXILIARY SYSTEM (AT, ABS, SRS, IC, SERVICE ...) - Identify fault systems: automatic transmission (AT), antilock brake system (ABS), Airbags (SRS), Instrument panel system (IP) ... - Check and monitor (very useful after the vehicle maintenance or clear the ECU memory) - Check for leakage of evaporative emission system (EVAP) - Retrieves vehicle information (VIN, CIN and CVN) - View communications protocol for the OBDII standard vehicles |
|||||||||||||
| ● APPLICATION | |||||||||||||
|
Used for: - Most of the cars the world which are compliant with the OBD-II standard. - The cars have individual standard EOBD: |
|||||||||||||
|
|||||||||||||
| ● ADVANTAGE OF THE EQUIPMENT | |||||||||||||
| - Easy to use
(follow instructions on the screen of the tool) - Convenient design - Reliable - High quality - Software upgradeable via the internet |
|||||||||||||
| ● TECHNICAL DETAILS | |||||||||||||
| - Screen resolution: 128 x 64 pixels
- Operating temperature: 0 to 60 degrees C - Reserved temperature: -20 to 70 degrees C - Power supply: 6 to 21 V are available from the car battery - Extension source: 6V (4 batteries 1.5V) |
|||||||||||||
 DTD Code Interface |
|||||||||||||
| ● PACKAGE | |||||||||||||
|

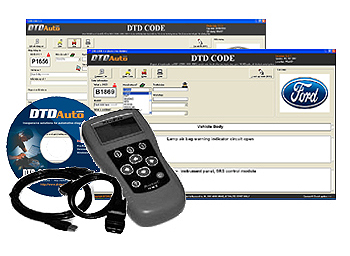

- 01 Main machine with LCD - 01 Guide book and 01 CD - 01 DTD Code software (Optional) - 01 USB cable and 01 extension cable - 01 Diagnostic connector - 01 Cover - 4 batteries 1.5V |
|||||||||||||
