| TLC 1.0.0.5 – COUNTDOWN CLOCK FOR TRAFFIC LIGHTS | ||||||||||||||
 |
|
|||||||||||||
|
● Product Code: EI1001
● Origin: DTDAUTO ● Availability: In stock ● Rate:   |
||||||||||||||
| ● OVERVIEW | ||||||||||||||
|
- TLC1.0.0.5 is a product made by DTDAUTO
Technology Team - TLC is used to support installing, repairing and upgrading the time indicator lights of traffic lights (Green, Yellow, Red) with kinds of incandescent lights & LED lights. It is very simple, safe, fast, convenient and efficient - TCL1.0.0.5 is a product designed with modern electronic technology; automatically recognize, adjust, update and display information, independent from kinds of traffic lights or current electrical box. - Quality is equivalent to European equipment - Low price, 24 month Warranty |
||||||||||||||
| ● TECHNICAL FEATURES | ||||||||||||||
| - Electronic motherboard is compact and installed completely inside the box LED PCB F30054 to create a specialized independent presentation unit.
- Anti-knock, anti-water, compact installation with the standard industrial design. - Electronic motherboard is manufactured by an automatic machine, includes 2 layers of silver-plate printed circuits to ensure durability and stability, very suitable for outdoor working conditions and high humidity. - Main components are made in Japan - Use photo-electronic components having good insulation, durability and accurate stable operation. - Center processing unit (CPU) is designed with advanced microcontroller technology to flexibly change display types with computer software. - Low energy consumption without additional resources. - Intelligent electronic circuits (Plug and Play) automatically identify and calculate operating time of light systems. - Automatically optimize and adjust, display online all 3 lights (Green, Yellow, Red). Automatically adjust even when users set "hot" mode of lights (Hot setting). Multitasking designed and independent from types of electrical cabinets. Moreover, TCL also has a function of conversion to use for two sorts of traffic lights: the old (incandescent lights) and the new (LED). - Not cause interference to other neighboring electronic equipment - The default mode: 00-99; Jump = 1sec |
||||||||||||||
 Traffic lights |
||||||||||||||
| ● COMPONENTS | ||||||||||||||

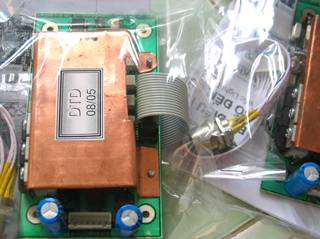

| - 01 display motherboard: LED PCB F30054
- 01 main circuit board: TLC1.0.0.5 - 01 sub-circuit board: TLCE (Optional) TLCE (only used for old-generation incandescent light) - 01 data cable model TLC - Documents |
||||||||||||||
| ● OTHER SPECIFICATIONS | ||||||||||||||
| - Voltage: 220V/50Hz
- Consumption Power: about 7 W - Total weight: about 1 kg - This kind of product is outdoor equipment |
||||||||||||||
