MULTI-POINT INJECTION & ELECTRONIC IGNITION WITH OBD-II
Model DIAG- OBD-II-07 |
|||||||||||||
 |
|||||||||||||
|
● Product code: ET2008 ● Origin: DTDAUTO ● Availability: In stock ● Rate:
 (Only support for Windows operating system) |
|||||||||||||
| ● OVERVIEW | |||||||||||||
| - This is a product of DTDAuto Technology Team, Institute of Physics, Hanoi, Vietnam.

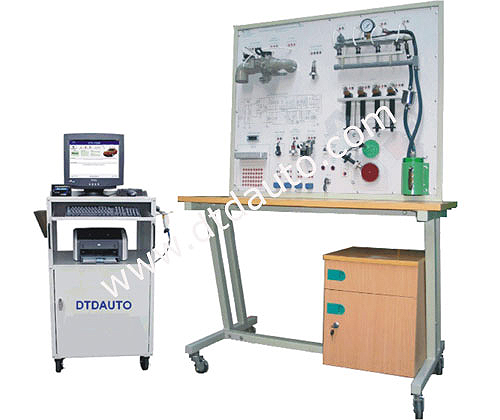

- Equipment is designed specially for vocational schools where trainees are taught both theory and practice of the electronic fuel injection system in OBD-II / CAN-compliant vehicles. - Model DIAG-OBD-II-07 is modern perfect training equipment providing all basic elements in technique training such as: Listening, Watching and Acting with online simulation, tests, and professional fault diagnosis by using a computer. - Construction of the system is built visually on the based of real parts of the system of multi-point fuel injection & electronic ignition in Toyota vehicles from 2005 up to now. - Connect online to DTD-Code (a computer-software) to display current sensor parameters, read and clear faults with the standard OBD-II. - Designed with the German standard of training equipment |
|||||||||||||
| ● TECHNICAL FEATURES | |||||||||||||
|
- Language: English or Vietnamese
- Circuit diagram is printed on the board - Simulate faults with PAN switches on the board - The Intake-air system uses an Air-pump - All systems work as if they did in real vehicles - Connected to the computer by COM port or USB port |
|||||||||||||
| ● BASIC CONSTRUCTION | |||||||||||||
| - 01 ECU of 1NZ-FE engine
(Made in Japan)
- 01 knock sensor (Made in Japan) - 01 Oxygen sensor (Made in Japan) - 01 Coolant temperature sensor (Made in Japan) - 01 Crankshaft position sensor (Made in Japan) - 01 Camshaft position sensor (Made in Japan) - 01 Throttle position sensor (Made in Japan) - 01 Intake flow sensor (Made in Japan) - 01 ISC valve (Made in Japan) - 01 OBD-II connector (Made in Japan) - 01 Check Engine Light (Made in Japan) - 01 Ignition key (Made in Japan) - 04 Main injectors (Made in Japan) - 04 Ignition plugs (Made in Japan) - 01 Fuel filter (Made in Japan) - 01 Fuel pump (Made in Japan) - 01 Pressure meter (Made in Japan) - Some relays, lights, switches and 01 speed-adjuster (Made in Japan) - 01 computer & computer table (optional without quotation) - 01 CDROM installation of software - 01 OBD-II electronics signal converter (Made by DTDAuto) - 01 12V Battery (optional without quotation) - 01 Equipment board with mobile-wheels - Documents |
|||||||||||||
| ● COMPONENTS | |||||||||||||
| - 01 visual-model with real parts of the electronic fuel injection system of the generation vehicles
- 01 CDROM for software installation of Electronic fuel injection system (DTD Code) - 01 computer and 01 computer-table (optional) - Reference documents and textbooks - 12V/50A Battery (optional) - Accessories, cables |
|||||||||||||
 DTD Code Interface |
|||||||||||||
 |
|||||||||||||
| ● OTHER SPECIFICATIONS | |||||||||||||
| - Voltage used: 220VAC/50Hz and 12VDC/50A;
- Total weight: about 60 kg - Dimensions: (1600H x 1800W x 550D) mm - Using area: about 1m3 - This kind of product is indoor-equipment |
|||||||||||||
