ELECTRONIC AIR SUSPENSION SYSTEM
Model ESAC 09 |
||||||||||||
 |
|||||||||||||
|
● Product code: ET2020 ● Origin: DTDAUTO ● Availability: In stock ● Rate:
 |
|||||||||||||
| ● OVERVIEW | |||||||||||||
| - ESAC is a product of DTDAuto Technology Team – Institute of Physics, Hanoi, Vietnam.
- ESAC is designed to use in vocational schools where trainees are taught principles of construction & operation of Electronic Air Suspension System in modern vehicles. - ESAC is modern training-equipment providing all basic elements in technique training such as: Listening, Watching, Acting; simulates online with specialized computer-software. - The system is built visually based on Electronic Air Suspension System of Toyota vehicles; connects online to a computer to control, simulate & display and graph the operation. - ESAC is designed, made in Vietnam with the German standard of training-equipment. - Help trainees to understand or get: + The basic system construction + Good-points as well as weak-points compared with normal suspension + Operation principles of Electronic Air Suspension System. + Circuit diagrams, real positions of parts in a Toyota vehicle + Fault diagnosis and basic repairing methods |
|||||||||||||
| ● TECHNICAL FEATURES | |||||||||||||
|
1. Computer software - E-textbooks include: static-images, animation, illustration video… which simulate online the construction and the operation of ESAC system. - Work well on projectors and in Multimedia classes. - Connected to a computer by COM or USB port to control ESAC model. - Graph the operation and compare normal air suspension with ESAC Electronic air suspension - Lookup circuit diagrams, lookup & read fault codes automatically and give repair suggestions. 2. Board component system - The system includes: + 04 Air suspensions (equivalent replacement) + 01 Valve to divide compressed air) + 01 Motor (to create force) + 04 Height sensors + 01 Steering angle sensor + 01 Throttle position sensor + 01 Brake pressure sensor + 01 Speed sensor + 01 Adjuster (to change cart load) + 04 bumped wheels + 01 Parameter display panel + 01 Control panel + 01 Electronic control unit + 01 Air compressor + 01 vibrator with 4 direction eccentric Camshaft + Contacts, fuses, warning lights, circuit diagrams, air tubes… + 01 electrostatic-panted steel frame with mobile-wheels - Directly manipulate with real parts on the model - Make characteristic study of the operation with a computer |
|||||||||||||

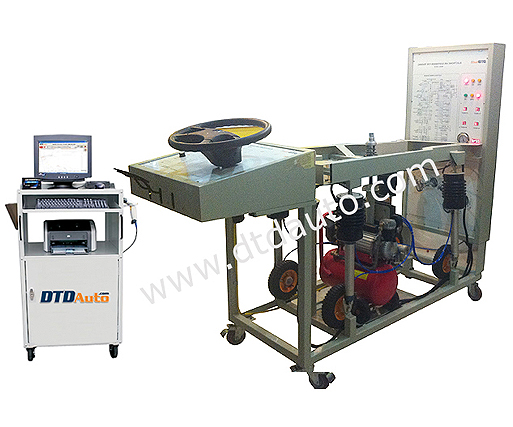

 Electronic air suspension system |
|||||||||||||
| ● COMPONENTS | |||||||||||||
| - 01 Model
(simulating ESAC system) - 01 CDROM of training-software of ESAC system - 01 desktop computer, 01 printer and 01 table (extra optional) - Reference documents, textbooks - 01 12V/50A battery, 01 charge unit and other accessories, cables |
|||||||||||||
| ● OTHER SPECIFICATIONS | |||||||||||||
| - Voltage: 220VAC/50Hz and 12VDC/50A;
- Total weight: about 60 kg - Using area: 1600 X 1900 X 600 mm - This kind of product is indoor equipment |
|||||||||||||
