VEHICLE ELECTRIC & ELECTRONIC TRAINER
Model VE-Trainer 08 |
|||||
 |
||||||
|
● Product code: ET2010 ● Origin: DTDAUTO ● Availability: In stock ● Rate:   |
||||||
|
|
||||||
| ● FUNCTIONS | ||||||
| - This training-equipment provides all basic elements in technique training such as:
Listening, Watching, Acting; it also provides online multimedia-simulation with specialized software
- Construction of the system is built on the basis of real parts of Electric & Electronic System - It is possible to connect to your computer to control, simulate, display, diagnose faults, and graph the operation of circuits, sensors, Electronic control system and the actuator |
||||||
| ● APPLICATION | ||||||
| VE-TRAINER is the perfectly-designed specialized equipment with high training quality and used in vocational schools where trainees are taught both theory and practice of Electric & Electronic system in modern vehicles | ||||||
| ● COMPONENTS | ||||||
| - Panel & cabinet
(containing equipment & frame)
- Multi-purpose Power Supply - 25 boards of basic function: 1. Sensor common board 2. Relay board 3. Fuse board 4. Switch board 5. Electronic part board 6. Lighting board 7. Ignition board 8. ISC valve & Injector board 9. ECU board 10. Actuator board 11. Multi-meter board 12. Headlight board 13. Micro-controller board 14. Camshaft & Crankshaft Sensor board 15. Temperature & MAP Sensor board 16. Rear & Brake lamp board 17. Data collection board 18. Horn & turn signal warning light board 19. Throttle position & Thermo-time switch board 20. Antenna board 21. Coolant fan board 22. Warning lamp board 23. Oxygen & Knock Sensor board 24. PAN board 25. Starter board - VE-Trainer 1.0 software (licensed software for only 01 computer) - 01 Computer & 01 computer table (extra optional, not included in quotation) - Technical documents |
||||||

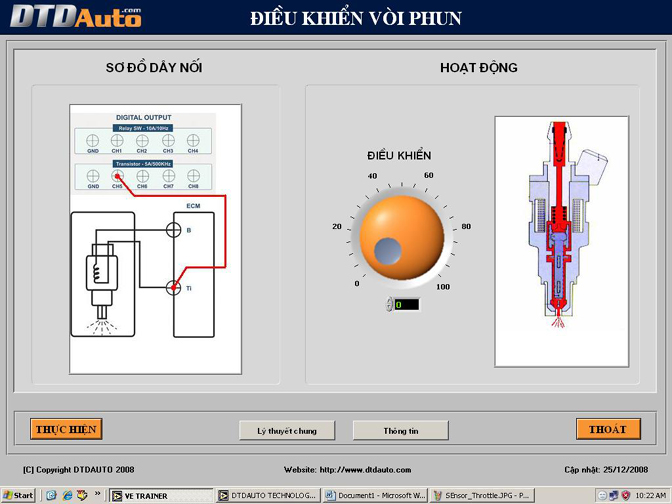

 VE Trainer 08  Control software interface  Control software interface |
||||||
| ● CONFIGURATION OF EQUIPMENT | ||||||
| - VE-Trainer 1.0 software runs on Windows with lively graphics interface: images, parameters and graphs of operation principles of electrical equipment, circuits and electronic control system.
- It is also possible to connect online to boards to get characteristic study, signal pulse, operation principles & control of sensors and actuators - 25 boards of basic functions are used to practice multi-purpose electrical circuits, principles, structure, activities, testing, fault diagnosis, repairing and troubleshooting. |
||||||
| ● FEATURES | ||||||
| - This equipment includes boards of basic functions, separate components with a vivid simulation of operation principles, circuit diagram and Electronic control
- Trainers and trainees can use it to measure, test parameters of each part directly or through a computer, set actual incidents to form skills as well as knowledge of repairing and troubleshooting - Especially, this equipment is open-designed for trainers and trainees to create or assemble boards according to each request of lessons from basic to advanced, from simple to complex with many methods and measuring instruments. - Training computer-software supports information of basic theory, images, study graphs, model assembling, online simulations and lively lectures. |
||||||
| ● SPECIFICATIONS | ||||||
| - Voltage used: 220VAC/50Hz, 12VDC/50A.
- Total weight: about 50 kg - Dimensions: 1600 X 1900 X 600 mm - This kind of product is indoor equipment |
||||||
