EFI SCAN 1.5+ – LOW PRICE SOLUTION TO READING FAULT CODES ALL SYSTEMS FOR TOYOTA, LEXUS, SCION VEHICLES

EFI SCAN 1.5+
DIAGNOSTIC SCANNER FOR ALL KIND OF TOYOTA, LEXUS, SCION VEHICLES
Latest version updated 20/12/2013

● Product code: ET1002
● Origin: DTDAUTO
● Availability: In stock
● Rate:

● Price: 198 $US
(Common shipping: 45 $US)

● INTRODUCTION

EFI SCAN 1.5+ is specialized PC tool pack includes 02 PC software and 02 electrical adapters used to diagnose faults, analyze live data, active test actuators and programming parameters for all TOYOTA, LEXUS, SCION vehicles which are compliant with:
- All cars and light trucks from 1980 to now in the world
- All OBD-I (car from 1980 to 1996), M-OBD (car use K-line for markets as Asian, Africa, middle East and Australia…), OBD-II standard
- All gasoline and diesel engine/ Motors
- All electrical system that control by ECU as Engine, Body, Chassis…
- All kind of diagnosis connectors as DLC1 (rectangle), DLC2 (circle), DLC3 (trapezoid)
- This equipment can works well with all Toyota cars have 16 pin connectors (DLC3) that some specialized OBD-II scanner of other companies doesn’t work.
- All OBD-II engine system of other manufacturer for cars and trucks in the world

● ADVANTAGES

- PC based solution is flexible
- New, efficiency, accuracy and reliability in diagnosis
- Easy to use and installation
- Compatible with vehicles on the markets of ASIAN, AFRICA, EU, US
- Online support technical by DTDAuto technician
- Warranty 12 months for technique faults of product
This is a good selection, cheap price for your workshop and personal vehicles!

● SOME EMAIL CONFIRM FROM CUSTOMERS

- Email sent from Indonesia customer...

Subject: Good Product
Dear Duong; Thank's for Your Product that is Good Product and I already try To Toyota Innova and Avanza here that is running well, also I already read all about Your Product instruction. I hope somebody the service car here want to order and use Your Product, so I am waiting the order here and always demo Your Product here so Please if somebody from Jakarta Indonesia contact direct to You Please inform for the demo can contact me and also can order from me. Regard's

- Email sent from Australia Customer...

Thank you. I received the EFI scan tool. I tried it and it works fine on the Australian Lexus. Excellent product and service thanks.
Regards Ray Pitts

● APPLICATION

- Used to determine trouble of all electronic systems controlled by ECU of TOYOTA, LEXUS, SCION vehicles. It cover all standard OBD-I, M-OBD, OBD-II
- Specially, it can work well for all cars with connector is 16 pins same OBD-II connector but not working with cheap OBD-II Scanner:
Example ECM models:
15BT, 1AZ-XX, 1CD-FTV, 1E, 1FZ-FE, 1GR-FE, 1HD-XX, 1HZ, 1KD-FTV, 1KZ-XX, 1MZ-FE, 1RZ, 1NZ-FE, 1SZ-FE, 1TR-FE, 1WZ, 1ZZ-FE, 1UZ-FE, 1G-FE, 2AD-TRB, 2AZ-FE, 2C-XX, 2E-XX, 2GR-FE, 2JZ-XX, 2KD-FTV, 2LXX, 2RZ-XX, 2TR-FE, 2TZ-XX, 2UZ-FE, 2VZ-FE, 2S-E, 2ZZ-XX, 2ZR-XX, 3C-TE, 3L, 3E-XX, 3GR-FE, 3MZ-FE, 3RZ-FE, 3S-XX, 3VZ-XX, 3ZZ-FE, 3UZ-FE, 3VZ-XX, 3ZR-XX, 4A-XX, 4E-FE, 4GR-FE, 4ZZ-FE, 5E-FE, 5K, 5S-FE, 5VZ-FE, 7A-FE, 7M-XX, 22R-XX...
Example ECM models:

+ Toyota: Aygo, Avensis, Avalon, Camry, Carina, Corolla, Crown, Corolla, Celica, Cressida, Dyna, Zace, Altis, Innova, Sienta, Supra, Harrier, Prado, Previa, Picnic/Sports Van, Land Cruiser, Hilux, Hiace, Fortuner, MR2, Rav4, Yaris, Starlet, Supra, Paseo, LiteAce, 4-Runner, Tacoma, Tercel, MR-II,... and all other models in Reference in car list
+ Lexus: CT 200h, ES 350, GS 350, GS 450, GS 460, HS 250, IS 250, IS, 350, IS F, LS 460, LS 600h, GX 460, LX 570, RX 350, RX460, LX 570, RX 350, RX 450h
+ Sicon: bbX, iQ, FR-S, tC, t2B, xA, xB, xD, Fuse

- EFI SCAN can be used other application:
     + As a repairing-tool for workshop or a training-tool for Vocational School.
     + Connect to automotive vocational trainer of EFI, ABS, SRS, AT, BODY vv… system
     + As a technical tester for private cars

● FUNCTION

- The main functions:

+ Read/Clear fault codes in ECUs, give repair suggestions: sensor systems, actuators, ECU for most electronic system on vehicles such as engine system, automatic transmission (AT), anti-lock braking system (ABS), airbag system (SRS), body system ...
+ Reset all of ECUs, turn off check engine light
+ Show parameter live data in different formats as analog clock, real-time data graph, statistical table…
+ Active test ON/ OFF actuators/ component
+ Show ECU information
+ Check monitoring status of systems
+ Programming key Immobilizer as add a registry key, edit key, clear registration key
+ Setting/ Programming special data Injectors
+ Setting/ Program TPMS (Tire Pressure Monitoring System)
+ Support for reset period maintenance (MAINT)
+ Look up fault codes

- Better support for diesel vehicle
- Support for reset period maintenance (MAINT)
- Support read fault code by both MIL and K-line serial data
- A best solution using PC software is installed on computer and combined with a signal converter to connect with ECU on car!

- Systems coverage:
     + Engine control system (PCM)
     + Chassis system (Chassis)
     + Anti-lock braking system (ABS)
     + Traction control system (TCS)
     + Electronic gear control system (AT/EG)
     + Body system (Body)
          + Door lock system
          + Lighting system
          + Wiper & washer system
          + Window & convertible system
          + Air conditioner control system
          + Door lock remote control system
          + Mirror system
          + Electric seat control system
     + Airbag system (SRS)
     + Instrument panel system (IP)
     + Key security system (Immobilizer)
     + 4-wheel drive system (4WD)
     + Cruise control system (ACC)
     + Electronic power steering system (EPS)
     + Hybrid system
     + Electronic damping system (ECS)
     + Radio system
     + Parking support system
     + Electronic stability system (ESP)
     + Audio system (Audio)
     + Other electronic control systems vv…
- Other special functions vv...

● COMMUNICATION

1. READ FAULT ENGINE BY MIL FOR OLD OBD-I/ MOBD VEHICLE

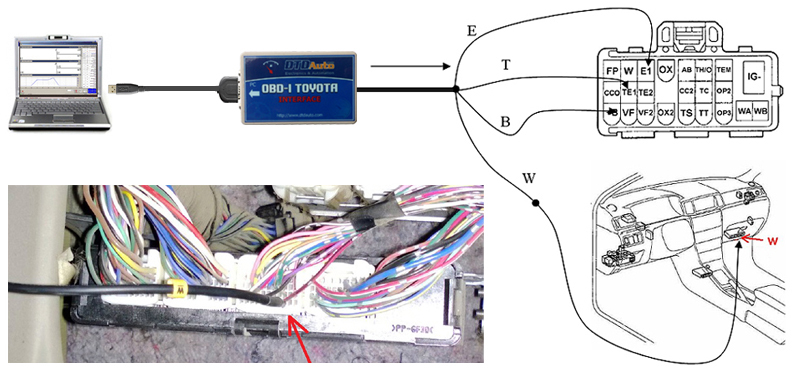

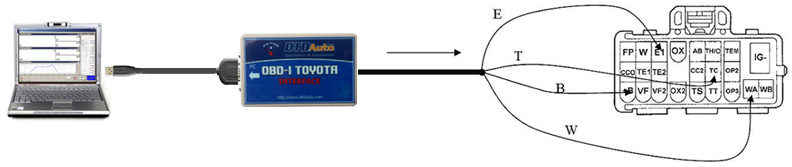

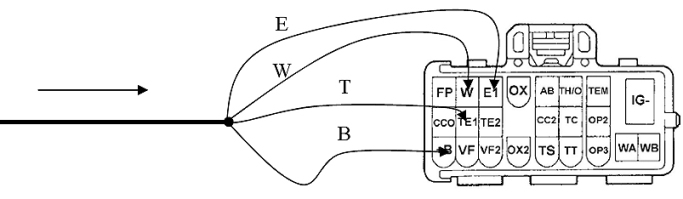

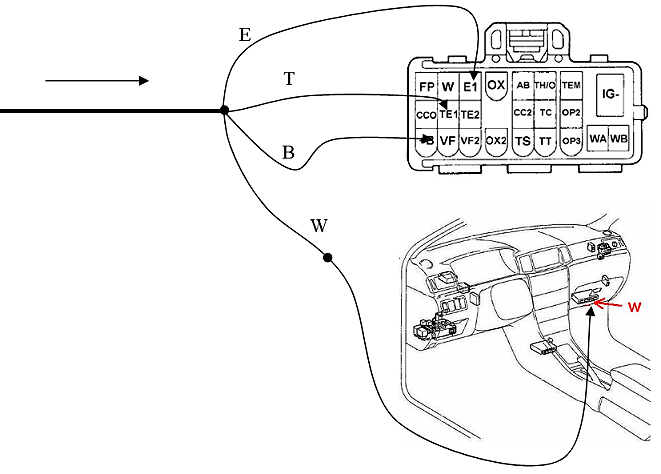

1.1. Case 1 (Use DLC1 with W pin is available on DLC1)

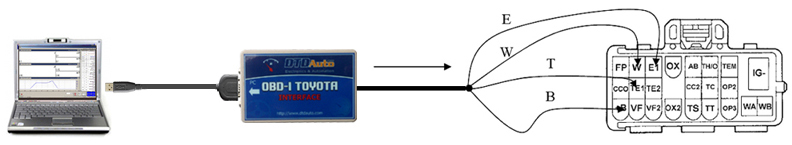

1.2. Case 2 (Use DLC1 with w pin is not available on DLC1)

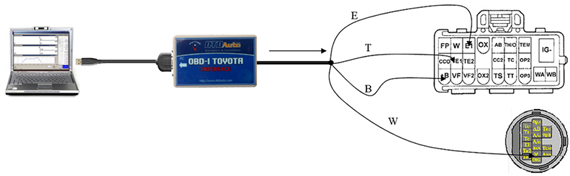

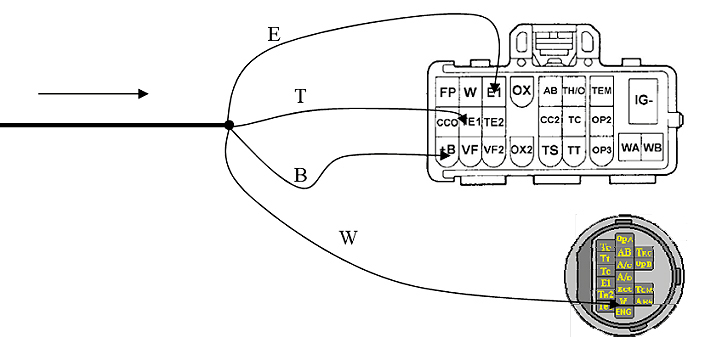

CONNECT EFI SCAN TO CAR VIA DLC1 AND DLC2	DLC2 LOCATION

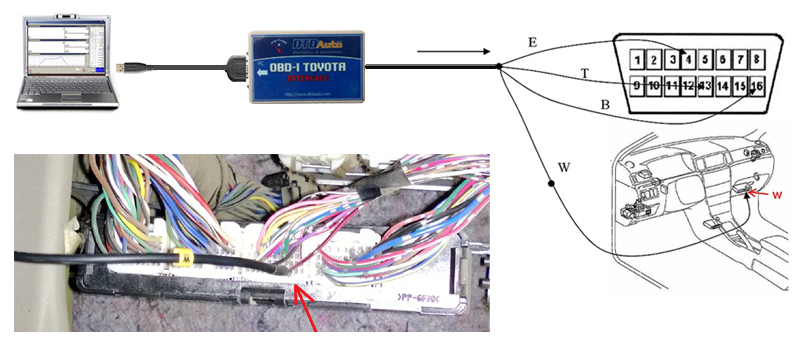

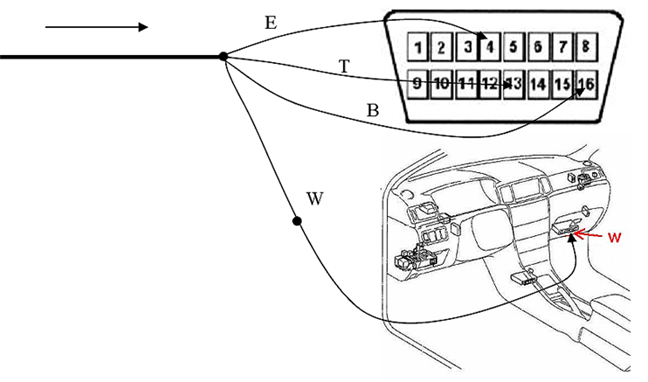

1.3. Case 3 (Use DLC3 with w pin is not available on DLC3)

2. READ FAULT ABS BY MIL FOR OLD OBD-I/ MOBD VEHICLE

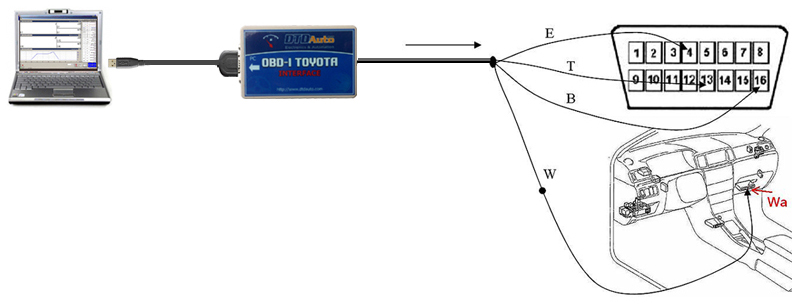

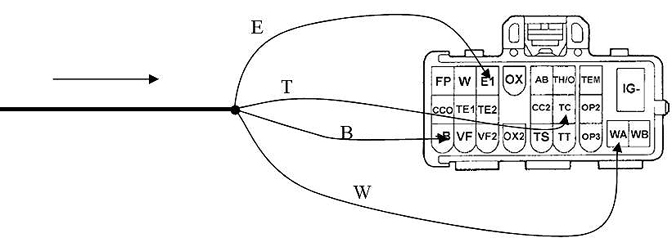

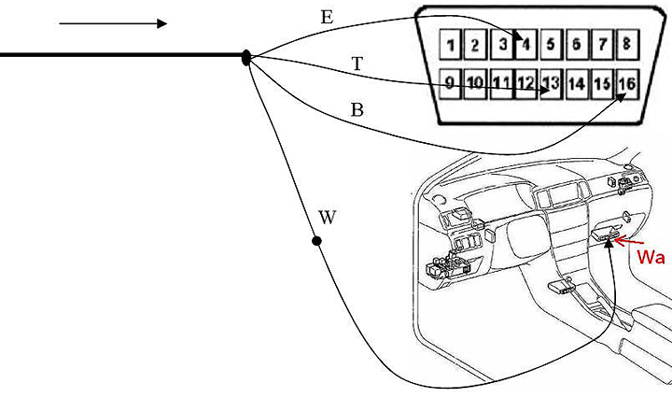

2.1. Case 1 (Use DLC1 with Wa pin is available on DLC1)

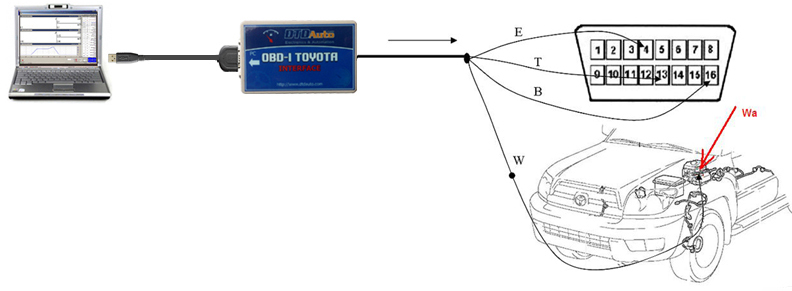

2.2. Case 2 (Use DLC3 with Wa pin is not available on DLC3)
Case 1: with ABS use 3-position valves

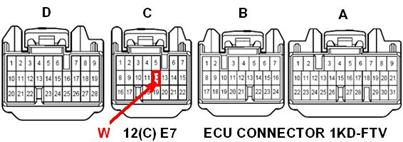

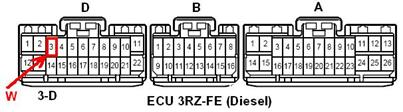

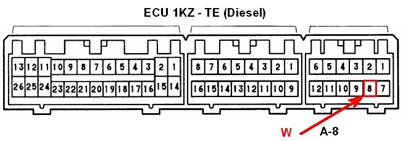

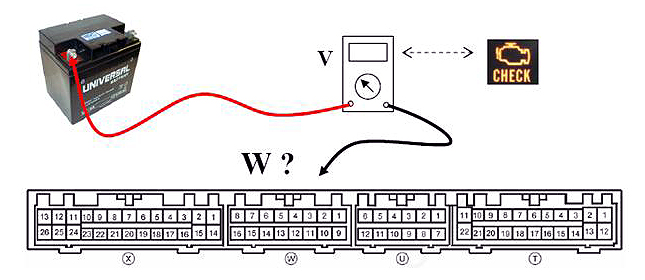

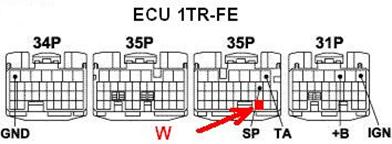

How to find W pin position on ECU connectors?

Case 2: with ABS use 2-position valves

3. DETERMINE FAULT ALL SYSTEM BY K-LINE FOR NEW MOBD & OBD-II VEHICLE


DLC3 ON THE CAR	CONNECT EFI SCAN TO CAR

● DOWNLOAD EFI SCAN SOFTWARE (Latest version)

Computer configuration	Download
- Operation System: Win XP SP3, Win 7 32bit - Processor: 586 MHz or higher - RAM: 32 MB or higher - Screen resolution: 800 by 600 pixels or higher - COM port or USB port

● SOME CAPTURE SCREEN

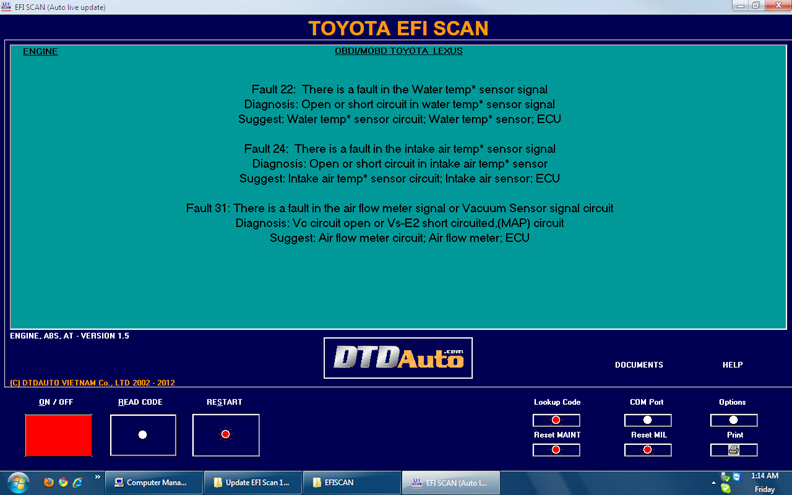

Software Screen – Show engine faults

Software Screen – Show ABS faults

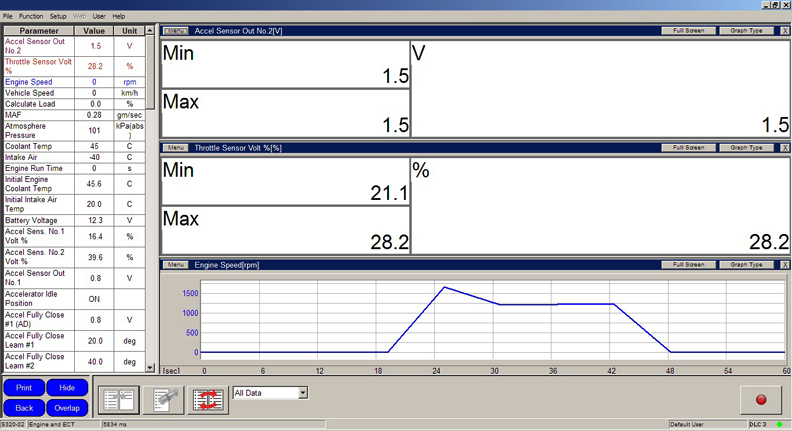

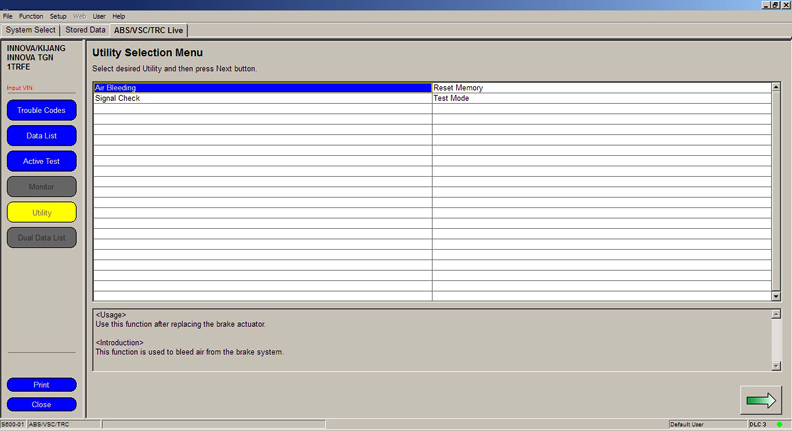

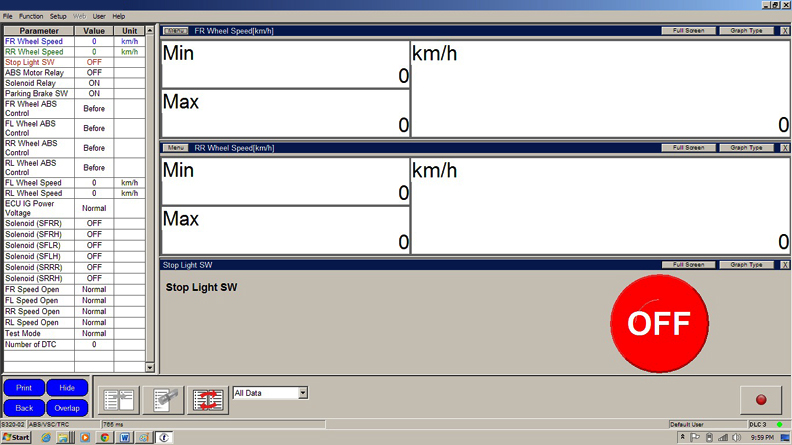

Software Screen - show live data

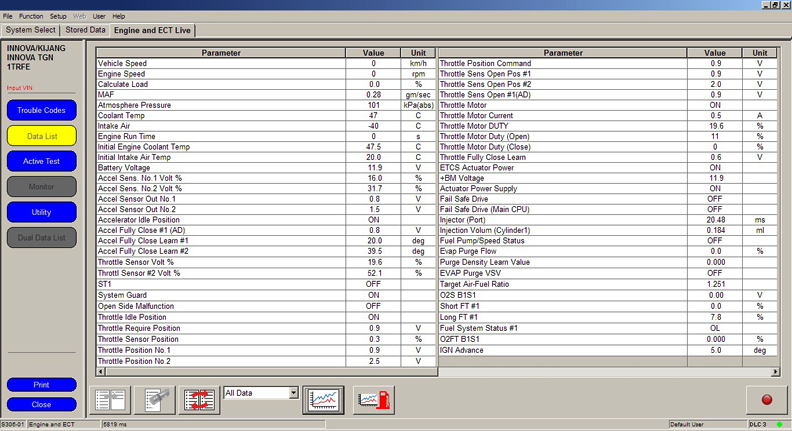

Software Screen - show live data

Software Screen - show live data

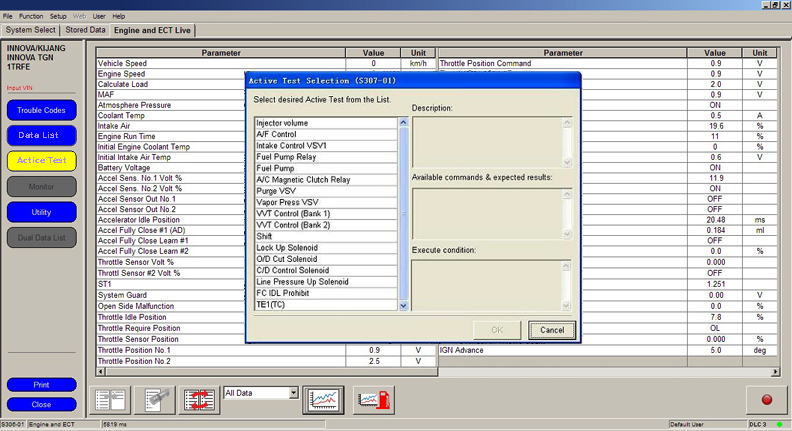

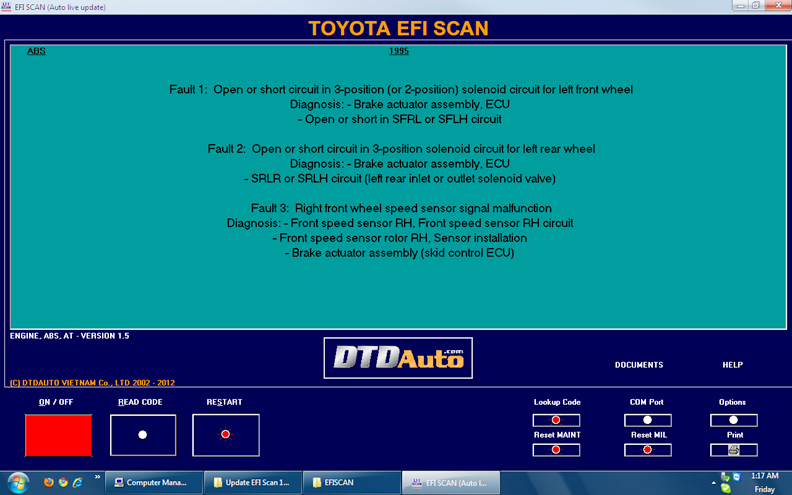

Software Screen – Show active test actuators

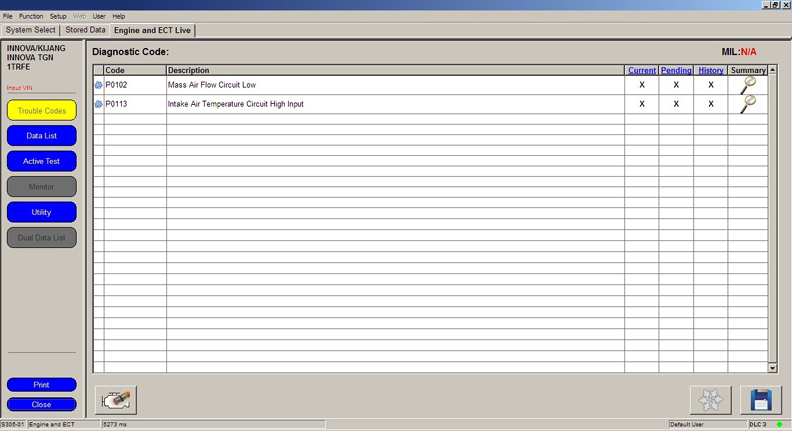

Software Screen - show fault code

Software Screen – Show special function

● PACKAGE

No	QUANTITY	DESCRIPTION	IMAGE
1	01	OBD-I & MOBD EFISCAN converter with 04 singe lines
2	01	MOBD & OBD-II EFISCAN converter integrated in cable
3	01	Software for OBD-I, MOBD and OBD-II Standard on CDROM
4	01	2.0 USB to COM cable
5	01	Guide book

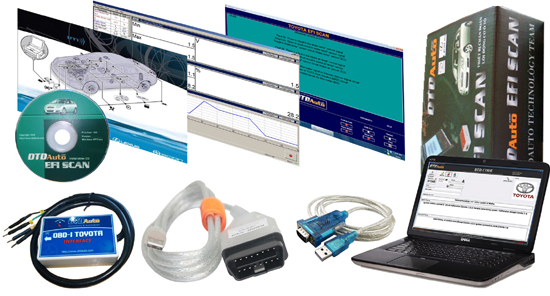

EFISCAN 1.5+ package
