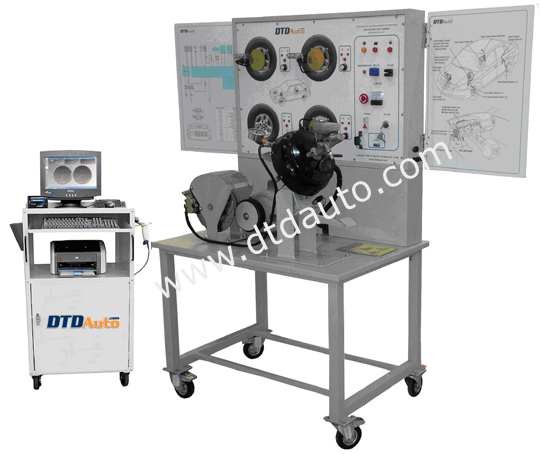

ANTI-LOCK BRAKE SYSTEM FOR TRAINING
Model MEDIA 2.0-4W |
||||||||||||||||||
 |
|||||||||||||||||||
|
● Product code: ET2001 ● Origin: DTDAUTO ● Availability: In stock ● Rate:   (Only support for Windows operating system) |
|||||||||||||||||||
| ● OVERVIEW | |||||||||||||||||||
| - The product made by DTDAuto Technology Team, Institute of Physics, Hanoi, Vietnam.
- ABS 2.0 is perfect specialized equipment for vocational schools where trainees are taught both theory & practice of ABS - ABS is modern training equipment providing all basic elements in technique training such as: Listening, Watching and Acting. It also provides online multimedia simulation with specialized software. - Construction of the system is built based on real parts of ABS. ABS software is used to control, simulate, display and graph the operation - ABS is designed, manufactured with the German standard set of training equipment |
|||||||||||||||||||
| ● FEATURES | |||||||||||||||||||
|
1. Software
- There is a full system of e-textbook including: audio, static images, animation, video clip of ABS structure & operation - Work effectively on projectors and multimedia classrooms. - Connect to a computer to control by COM port or USB port - Graph the operation of ABS compare with normal brakes - There is a system of sample exercises & tests - Diagnose fault by special software of computer - System can work independently from the computer or automatically controlled by the computer - English or Vietnamese language 2. Board component system - The model includes the real parts of ABS of Mercedes or BMW or Toyota + 04 (or 03) disk brakes (Origin: Mercedes or BMW or Toyota) + 04 (or 03) speed sensors (Origin: Mercedes or BMW or Toyota) + 01 Pedal pump block (Origin: Mercedes or BMW or Toyota) + 01 ABS valve unit (Origin: Mercedes or BMW or Toyota) + 01 ECU (Origin: Mercedes or BMW or Toyota) + 01 AC Motor for the demonstration (Origin: Vietnam) + 01 Table fitted with equipment (Origin: Vietnam) + Switches, fuses, ABS warning lights, circuit diagrams, hydraulic system... (Origin: Toyota or Germany) - Manipulate with real parts in the Car - Study characteristically the operation breaking of ABS mode and normal mode |
|||||||||||||||||||
| ● COMPONENTS | |||||||||||||||||||
| - 01 Model with real parts of ABS
- 01 CDROM of ABS training-software - 01 ABS electronic adapter (Made in Vietnam) - 01 desktop computer, - 01 printer and 01 computer-table (extra-optional, not included in quotation) - 01 12V/50A Battery (extra-optional, not included in quotation) - 01 battery charger with accessories, cables (Made in Vietnam) - Reference documents |
|||||||||||||||||||

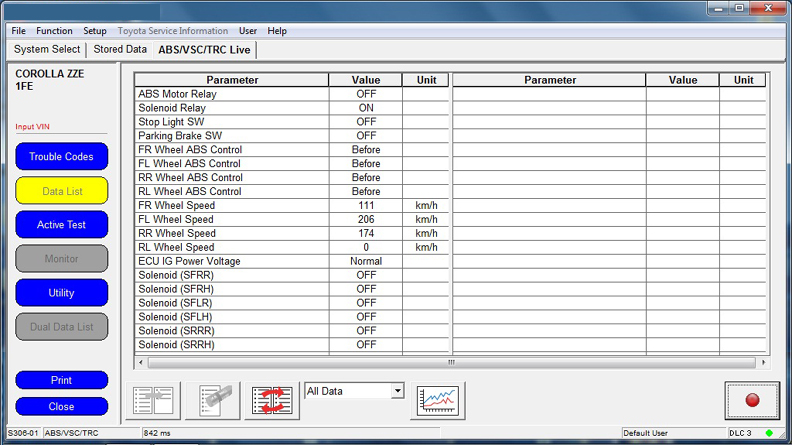

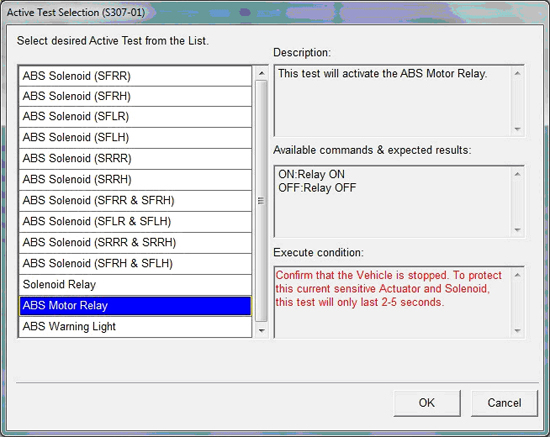

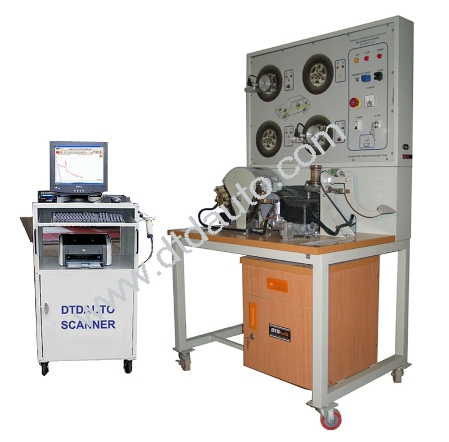

 Software interface - Read fault codes  Software interface - Show live data  Software interface - Active actuators  Anti-lock brake system |
|||||||||||||||||||
| ● OTHER SPECIFICATIONS | |||||||||||||||||||
| - Voltage used: 220VAC/50Hz and 12VDC/50A
- Total weight: about 50 kg - Using area: 1600 X 1900 X 600 - This kind of product is indoor-equipment |
|||||||||||||||||||
